Firewall

VM2Cloud VE has a firewall at three levels, plus one for virtual networks. They share one rule editor and one set of reusable objects.

Level	Where	Applies to
Datacenter	Datacenter → Firewall	Everything in the cluster
Node	node → Firewall	That server’s own traffic
Guest	guest → Firewall	That machine’s network adapters
Virtual network	Datacenter → SDN → VNet Firewall	Traffic on an SDN network

Rules are evaluated from the outside in — datacenter first, then node, then guest.

Read this before you enable anything

There are two switches, and both must be on.

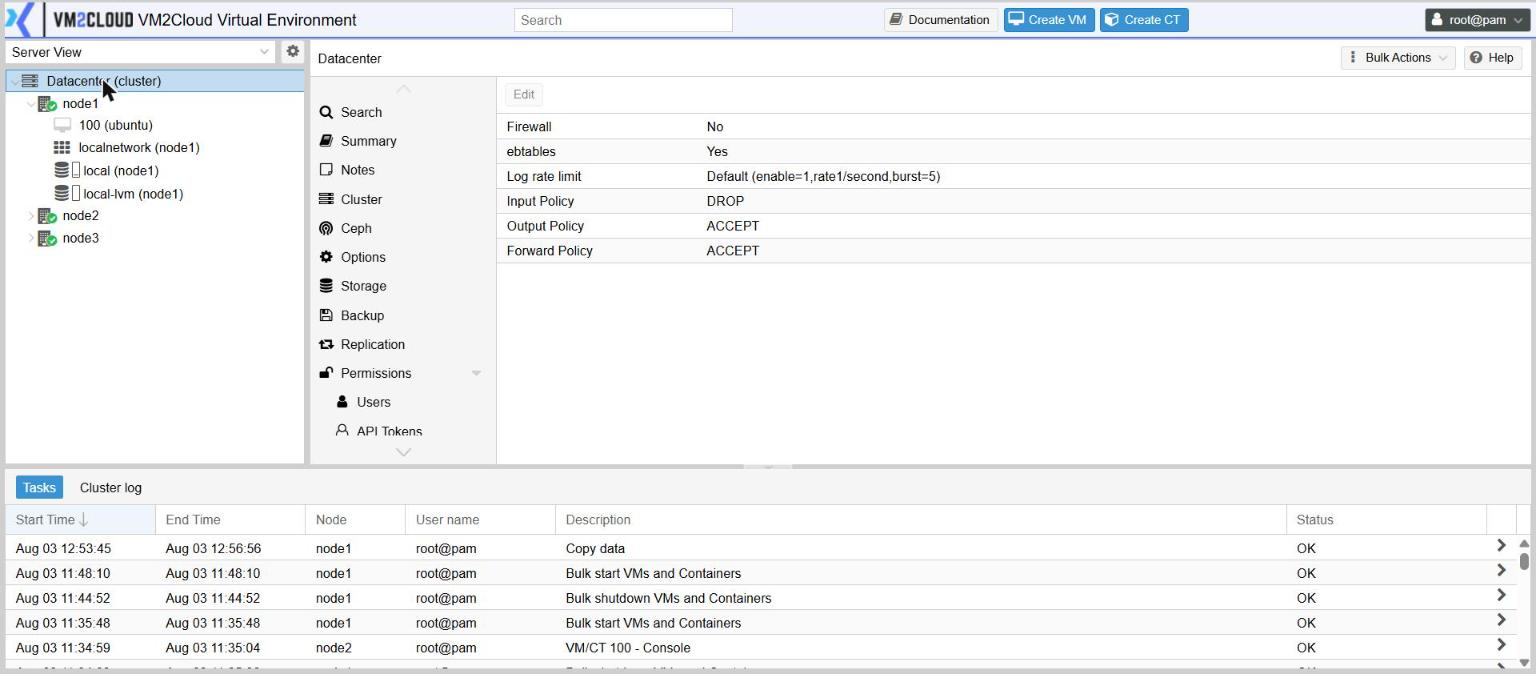

• Datacenter → Firewall → Options → Firewall is the master switch. It is off on a new installation.
• node → Firewall → Options → Firewall is on by default.

So on a fresh system you can write a complete rule set, see it listed, and have none of it enforced — because the master switch is off.

The same panel shows what happens to traffic no rule matches:

Policy	Default
Input Policy	DROP
Output Policy	ACCEPT
Forward Policy	ACCEPT

Turning the master switch on can lock you out

Input Policy is DROP, so once the firewall becomes active any inbound traffic no rule permits is discarded — including your connection to the web interface on port 8006. Add a rule permitting management access from your own network first, then enable the firewall.

If it happens anyway, you will need physical or remote console access to the server to undo it.

The safe order

1. Datacenter → Firewall → Add a rule: direction in, action ACCEPT, source your management network, and the macro or port for the web interface.
2. Add whatever else must keep working — name resolution, monitoring, backups.
3. Review the list.
4. Only then, Datacenter → Firewall → Options → set Firewall to Yes.
5. Confirm you are still connected, from a second browser session you did not use to make the change.

Writing a rule

1. Open the firewall at the level you want.
2. Click Add.
3. Fill in the dialog:

Field	What it means
Direction	in — traffic arriving. out — traffic leaving.
Action	ACCEPT, DROP (silently discard) or REJECT (refuse and say so).
Macro	A named service that fills in protocol and ports for you. Prefer this.
Protocol, Source port, Dest. port	Only needed when you are not using a macro.
Source, Destination	An address, a network in CIDR form, an Alias, or an IPSet written with a + in front.
Interface	Restrict the rule to one network interface.
Log level	Whether matches are logged.
Comment	Why this rule exists. Fill it in.

4. Click Add.

Use macros rather than port numbers

A macro names the service and fills in the right protocols and ports, including the ones people forget. It also makes the rule list readable a year later.

Reusable objects

Rather than repeating addresses across rules, name them once.

Object	Holds	Referenced as
Alias	One address or network	its name
IPSet	Many addresses or networks	+name
Security Group	An ordered set of rules	inserted with Insert: Security Group

Use an Alias for a single thing — the backup server, the monitoring host. Use an IPSet for a collection — all office networks, all management networks. Change the object and every rule using it follows.

A Security Group is a whole named policy. Build one for, say, a web server, then insert it into every web server’s firewall. Editing the group updates them all.

To build an IPSet: Create the set, select it, then Add entries to it.

Node-level options

node → Firewall → Options carries the node’s own switches:

Setting	Purpose
Firewall	On/off for this node — still subject to the datacenter master switch
SMURFS filter	Blocks a class of broadcast amplification traffic
TCP flags filter	Rejects nonsensical TCP flag combinations
NDP	Allows IPv6 neighbour discovery. Leave on where IPv6 is in use.

Datacenter-level options add ebtables and a Log rate limit, which caps how much the firewall writes when many packets match a logging rule.

Guest firewall

A machine’s rules need three things on:

1. The datacenter master switch.
2. guest → Firewall → Options → Firewall.
3. The firewall toggle on the individual network adapter, under guest → Hardware.

Miss the third and the guest’s rules silently do nothing.

Where to put a rule

Protect the platform at datacenter level, the server at node level, and the workload at guest level. Rules that describe what a machine does — “this is a web server” — belong on the machine, so they travel with it when it migrates.

Seeing what the firewall did

node → Firewall → Log and guest → Firewall → Log show traffic the firewall acted on. Live Mode follows it as it happens.

Rules do not log by default

A rule only appears in the log if its Log level is set. When you are trying to work out what is being blocked, set logging on the rule you suspect, reproduce the problem, then turn it back off.

If something goes wrong

What you see	What to do
Rules seem to do nothing	The datacenter master switch is off. Everything below it is inert.
Guest rules do nothing, node rules work	The firewall toggle on that machine’s network adapter is off.
You lost the web interface after enabling the firewall	You are locked out. Use console access to the server, or contact support.
Something is blocked and you cannot tell why	Set Log level on the rules you suspect, reproduce it, and read Firewall → Log.
A rule works on one machine but not another	Check whether it came from a security group that only one of them includes.

Still stuck? Contact VM2Cloud support.
